If you've priced out a roof replacement, you've probably noticed three very different numbers for what looks like the same product. That gap comes down to three shingle tiers - 3-tab, architectural, and designer - each built differently, priced differently, and rated for different conditions.
What Is an Asphalt Shingle, Really?
Every asphalt shingle starts the same way: a fiberglass mat saturated with asphalt and topped with ceramic-coated mineral granules that provide color, UV resistance, and fire rating. What changes between tiers is thickness, layering, and how the granules are applied - differences that sound minor on paper but add up to a decade or more of lifespan difference on the roof.

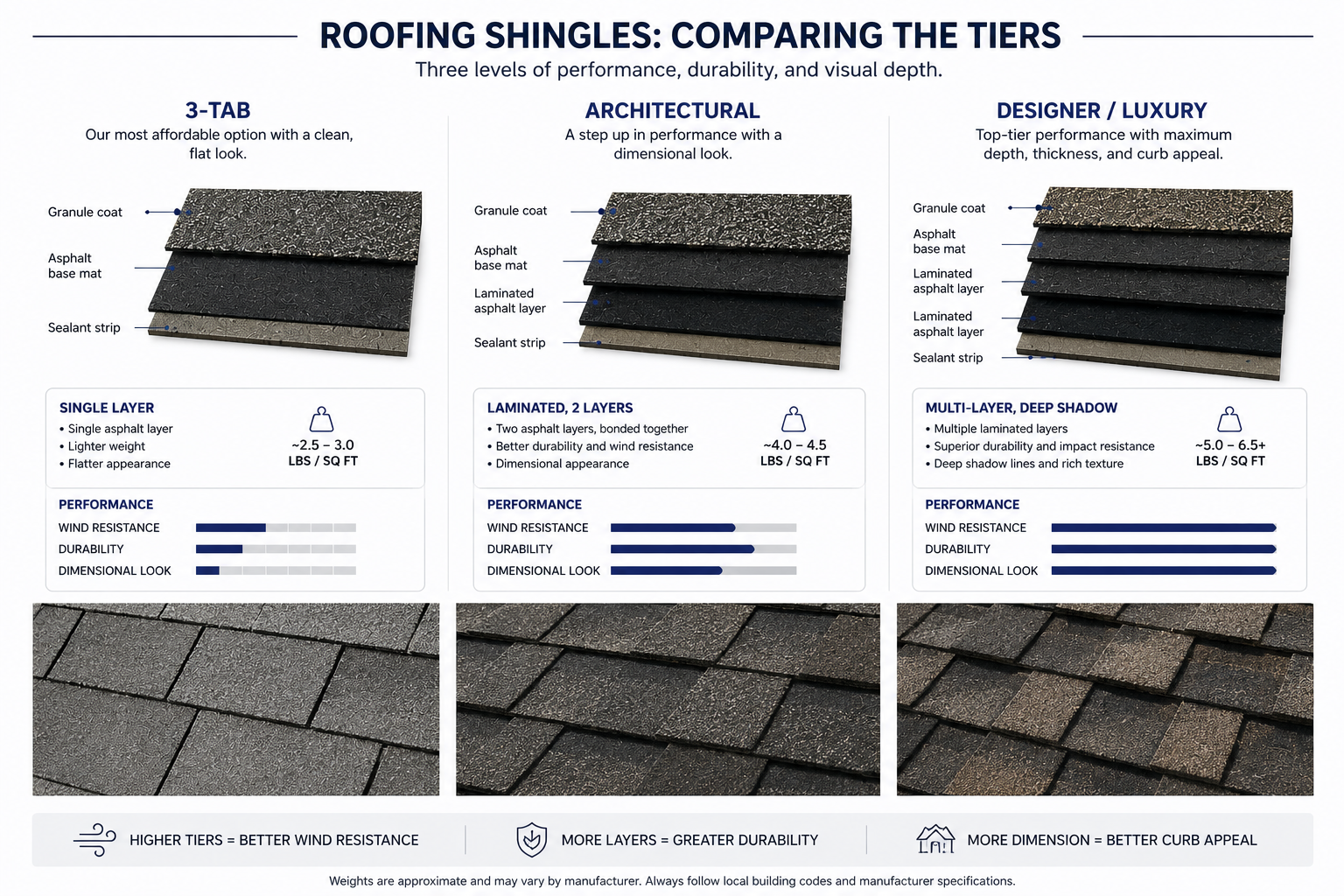

Shingle Cross-Section - Where the Tiers Differ
3-Tab Shingles

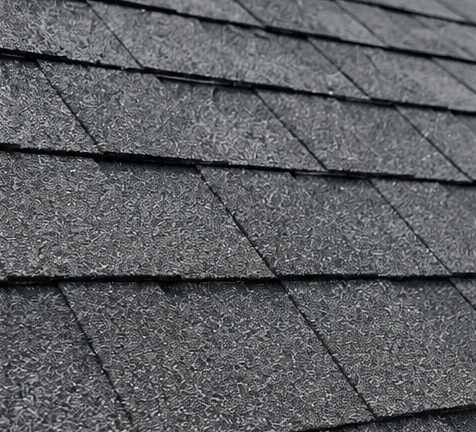

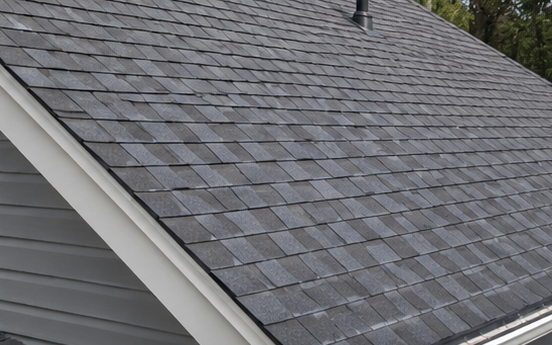

3-tab shingles are the flat, uniform-looking shingle you'll recognize from older neighborhoods - a single layer cut into three identical tabs per strip, creating a repeating, flat pattern across the roof. They're the lightest and least expensive option, and the one major manufacturers are gradually phasing out of production.
- Lifespan: 15-20 years
- Wind rating: typically 60-70 mph
- Look: flat, uniform, single-dimension pattern
- Best for: rental properties, sheds, strict budget rebuilds
Architectural (Dimensional) Shingles

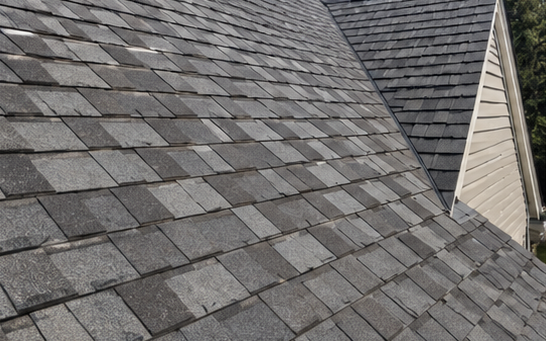

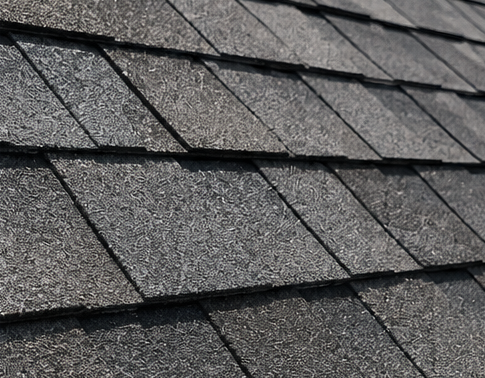

Architectural shingles - also called dimensional or laminate shingles - are built from two or more asphalt layers fused together, creating a thicker, textured shingle with a shadow-line pattern that mimics natural wood shake from a distance. This is now the de-facto standard shingle on new construction and replacements across the US.
- Lifespan: 25-30 years
- Wind rating: 110-130 mph depending on the product line
- Look: dimensional, textured, shadow-line depth
- Best for: the large majority of NC & SC homeowners - best balance of cost, durability, and curb appeal
"Architectural shingles aren't a premium upgrade anymore - for most manufacturers, they ARE the standard product. 3-tab is the one you have to go looking for."
- The RoofEstimate Roof Repair Co. TeamDesigner / Luxury Shingles

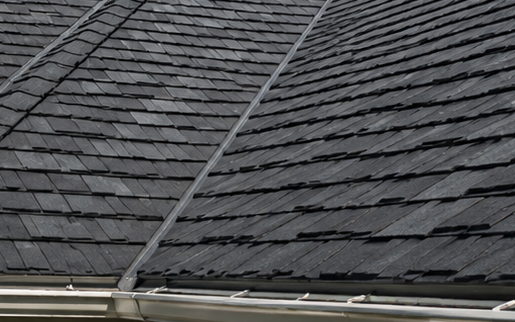

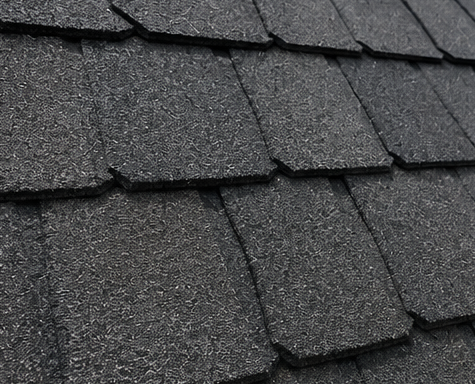

Designer shingles push the laminate concept further, with heavier, multi-layer construction engineered to replicate the deep shadow lines of natural slate or the irregular butt-edges of cedar shake. They're the heaviest asphalt shingle made and typically require reinforced roof decking to support the added weight.
Simulated Slate Lines
Irregular, dimensional tabs designed to mimic quarried slate at a fraction of the weight and cost of the real material.
30-50 yr lifespanSimulated Cedar Shake Lines
Chunky, staggered profiles that recreate the hand-split look of cedar shake without the fire risk or maintenance.
30-40 yr lifespanClass 4 Impact Lines
Reinforced polymer-modified asphalt that resists hail cracking - often qualifies for an insurance premium discount.
Ins. discount eligibleSide-by-Side Comparison
| Feature | 3-Tab | Architectural | Designer |
|---|---|---|---|
| Cost per sq ft installed | $3.50 - $5.50 | $4.50 - $7.50 | $7.50 - $14 |
| Lifespan | 15-20 yrs | 25-30 yrs | 30-50 yrs |
| Wind rating | 60-70 mph | 110-130 mph | 130+ mph |
| Weight per sq ft | ~2.5-3 lbs | ~4-4.5 lbs | ~5-6.5 lbs |
| Typical warranty | 20-25 yr limited | Lifetime limited | Lifetime, non-prorated |
| Manufacturer availability | Being phased out | Widely available | Select product lines |
Cost Breakdown for NC & SC Homes
For a typical 2,200 sq ft NC & SC roof (about 22-24 squares including waste), here's roughly what each tier runs installed, materials and labor included:
- 3-tab: $8,000 - $13,000 total
- Architectural: $10,500 - $17,500 total
- Designer: $17,500 - $32,000+ total (deck reinforcement may add cost)
The gap between 3-tab and architectural is smaller than most homeowners expect - often just $2,000-$4,000 on an average roof - for 5-10 extra years of service life and a materially stronger wind rating.
Wind & Impact Ratings
North & South Carolina's UL/ASTM wind classifications matter more here than almost anywhere else in the country, given hurricane remnants that regularly push inland to the Piedmont. Here's how the three tiers typically test:
North & South Carolina Climate Considerations
North & South Carolina's climate isn't uniform, and shingle choice should shift depending on where in the state a home sits. Coastal counties from Wilmington to the Outer Banks face salt-laden, wind-driven rain and direct hurricane exposure, which pushes most roofers toward architectural or designer shingles rated Class H (130+ mph) rather than standard 3-tab. The Piedmont - Charlotte, Raleigh, Durham - sees fewer sustained high winds but a heavier hail season, making Class 4 impact-rated designer shingles worth the premium for the insurance discount alone. In the western mountains around Asheville and Boone, UV exposure at higher elevation and rapid freeze-thaw cycles accelerate granule loss on lower-tier shingles, so the extra laminate layers in architectural and designer products pay off in longevity rather than just wind resistance. Humidity statewide is the other constant factor: algae streaking (black staining from Gloeocapsa magma) shows up faster on lighter-colored 3-tab shingles, while most architectural and designer lines now include copper- or zinc-infused granules specifically to resist it.
Which One Is Right for Your Home?
Quick Decision Guide
Frequently Asked Questions
For almost every homeowner, yes. Architectural shingles cost about 20-30% more than 3-tab but last 5-10 years longer, carry a stronger wind rating, and are what most manufacturers now warranty as their standard product. 3-tab shingles are becoming harder to find as major manufacturers phase them out.
3-tab shingles typically last 15-20 years. Architectural (dimensional) shingles last 25-30 years. Designer/luxury shingles can last 30-50 years depending on the product line.
Yes. Designer shingle lines are specifically engineered to mimic the deep shadow lines and texture of natural slate or cedar shake at a fraction of the weight and cost, while still using an asphalt-fiberglass base.
Architectural and designer shingles rated for 130 mph winds (Class H) are recommended for most of North & South Carolina, especially coastal and Piedmont counties exposed to hurricane remnants. Standard 3-tab shingles are typically rated to only 60-70 mph.
